Laser Gain Modules

CEO’s laser resonator and laser amplifier modules are the engine that drives not only our own DPSS laser systems, but also external customers who fabricate their own DPSS laser systems.

With a variety of gain medium, rod diameter, rod length and diode bar count options, these gain modules have served as a work horse for important applications:

Let us know your application. We may have a fit.

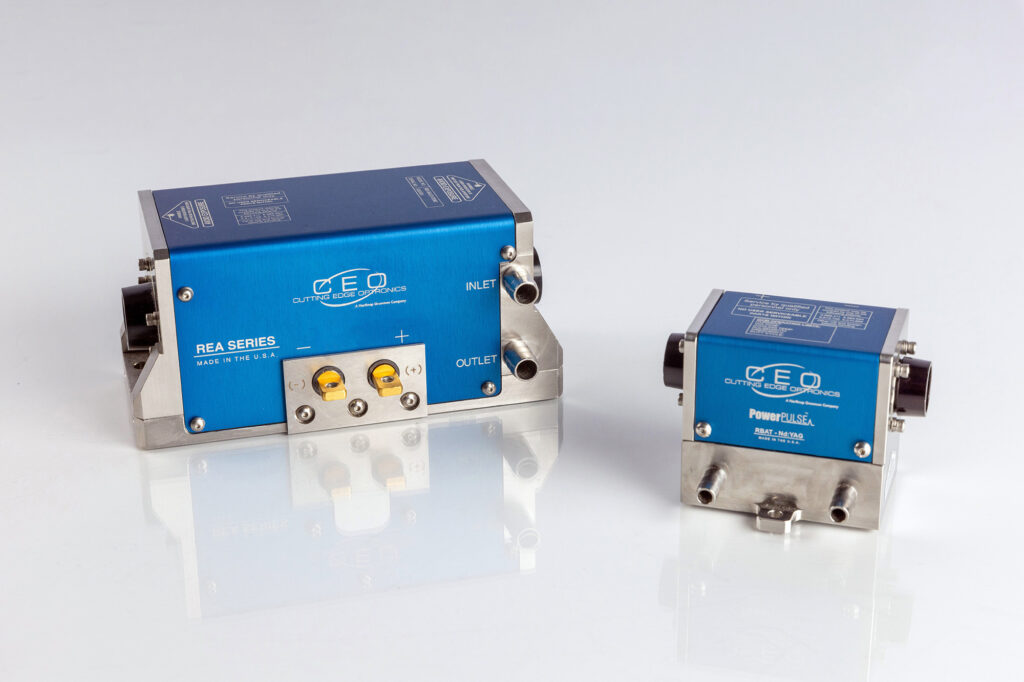

CEO’s RBAT series of laser modules are available with rod sizes from 2 to 4mm in diameter, both CW and QCW pumped, and standard offerings of YAG and YLF materials. Maximum CW powers of 150W and long pulsed energies of 500mJ are supported. Typical uses are laser single mode oscillators for pulsed MOPA systems, CW pumped, 532nm, ns q-switched lasers, and LIDAR lasers.

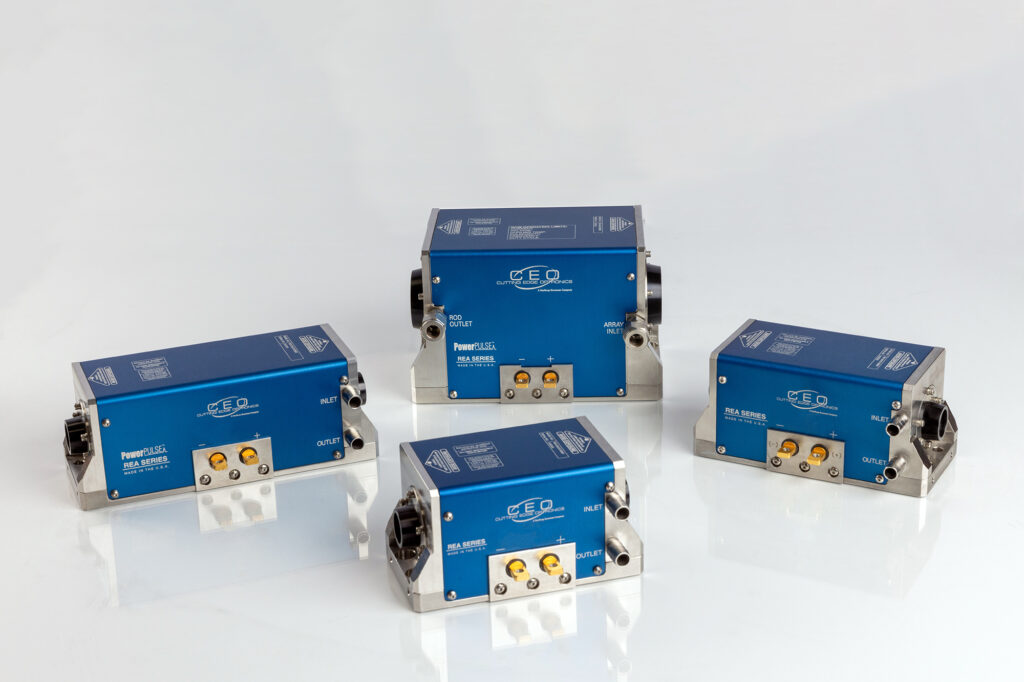

CEO’s REA series of laser modules are available with rod sizes from 4 to 32mm in diameter, both CW and QCW pumped, and standard offerings of YAG and YLF materials. Maximum CW powers of 650W and long pulsed energies of 8J are supported. Typical uses are laser amplifiers for nanosecond and picosecond MOPA lasers, gain modules for unstable oscillator resonators, and laser peening.

Laser Gain Modules

wdt_ID Module Type Type Module Part Number Rod Diameter (mm) Peak Pump Power (W) Output Power (W)* Stored Energy (J) Download
1 RBAT CW RBAT20-0.33C2 2.00 60 10
2 RBAT CW RBAT20-0.66C2 2.00 120 20
3 RBAT CW RBAT20-1C2 2.00 180 35
4 RBAT CW RBAT250-1C2 2.50 180 40
5 RBAT CW RBAT30-1C2 3.00 180 50
6 RBAT CW RBAT24-1C2 2.00 240 50
7 RBAT CW RBAT254-1C2 2.50 240 65
8 RBAT CW RBAT34-1C2 3.00 240 75
9 RBAT CW RBAT34-1C2-FO1 (YLF) 3.00 240 35
10 RBAT CW RBAT35-1C2 3.00 300 100
Module Type Type Rod Diameter (mm) Peak Pump Power (W) Output Power (W)* Stored Energy (J)

*RBAT (CW) Short Cavity Test Configuration – Cavity Length: 165 mm + 5 mm, High Reflector: 0.75mCC, Output Coupler: 80%
*RBAT (QCW) Short Cavity Test Configuration – Cavity Length: 165 mm + 5 mm, High Reflector: 0.75mCC, Output Coupler: 40%
*REA (CW) Short Cavity Test Configuration – Cavity Length: 280 mm + 5 mm, High Reflector: 0.75mCC, Output Coupler: 70%
*REA (QCW) Short Cavity Test Configuration – Cavity Length: 280 mm + 5 mm, High Reflector: 0.75mCC, Output Coupler: 40%

Contact the sales team for the full list of capabilities and specifications
